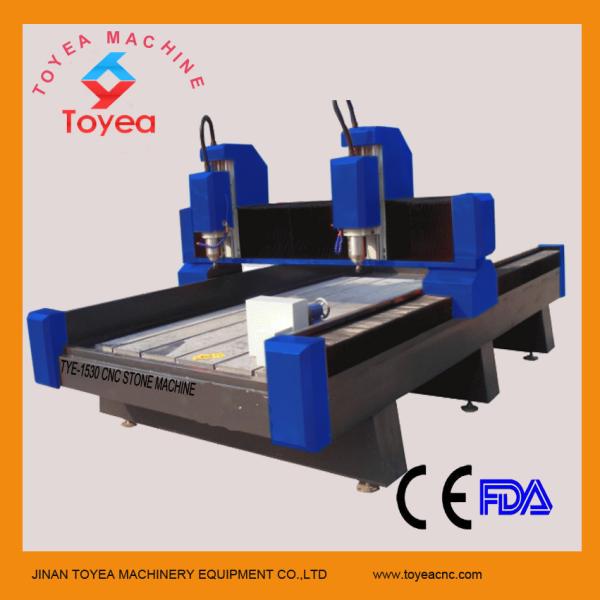

strong machine body double-heads gravestone cnc engraving machine TYE-1530-2

    Buy cheap strong machine body double-heads gravestone cnc engraving machine TYE-1530-2 from wholesalers

    Buy cheap strong machine body double-heads gravestone cnc engraving machine TYE-1530-2 from wholesalers
    • Buy cheap strong machine body double-heads gravestone cnc engraving machine TYE-1530-2 from wholesalers

    strong machine body double-heads gravestone cnc engraving machine TYE-1530-2

    Ask Lasest Price
    Brand Name : TYE
    Certification : CE
    Model Number : TYE-1530-2
    Delivery Time : 7-10 working days
    Payment Terms : TT in advance
    Supply Ability : 300 pcs/month
    • Product Details
    • Company Profile

    strong machine body double-heads gravestone cnc engraving machine TYE-1530-2

    strong machine body double-heads gravestone cnc engraving machine TYE-1530
    double-heads gravestone cnc engraving machine Machine Features
    1. A three-axis linear guide running smoothly, and high precision.
    2. Complete machine using seamless welding steel structure, rigid, and no deformation, the dorsal surface lining plate, strength, steel and good.
    3. Constant power spindle motor, cutting intensity, high efficiency.
    4. The U-disk embedded control system completely offline to work more convenient and flexible.
    double-heads gravestone cnc engraving machine parameters:
    ModelTYE -1530-2
    Working Area1500*3000*300mm
    Machine Structure
    Thick-walled square tube lathe bed
    and T-slot table of sectional material
    Work HoldingBy Clamps
    Precision0.0 1 mm
    Positioning accuracy0.0 1 mm
    Repeatability0. 03 mm
    Idling Speed17 ,000mm/min
    Working Speed10 ,000mm/min
    Spindle power4 . 5 KW water-cooling ,constant power x 2
    Spindle rotating0-24000rpm
    Available Toolsφ 3.175~ φ 12.7
    Drive SystemStepper motor
    Working VoltageAC380V ± 30V, 50HZ
    Command CodeG Code (*.nc, *.mmg, *.u00, etc.), *.eng
    Control SystemNcStudio( DSP,Mach 3 optional)
    Compatible SoftwareCompatible with any software generating G code file in Window 98/XP/7
    Overall Dimensions3550*2300*1700
