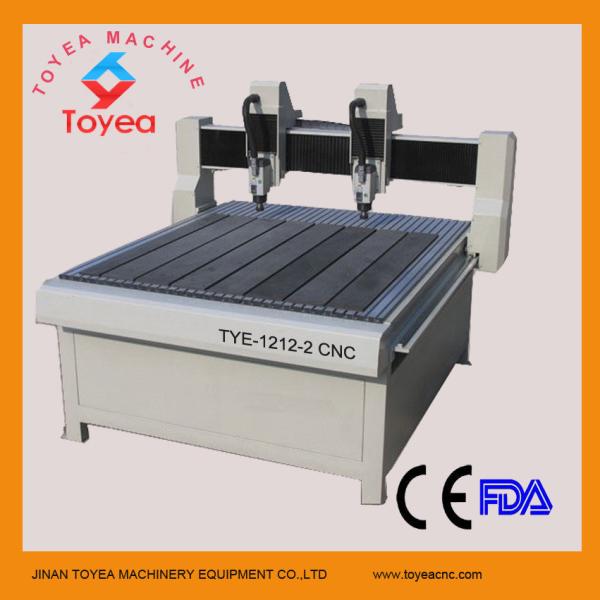

    CNC two heads acrylic cutting machine with 1200 x 1200mm working area TYE-1212-2

    CNC two heads acrylic cutting machine with 1200 x 1200mm working area TYE-1212-2
    CNC two heads acrylic cutting machine Features:

    1, Machine body is solid, no deform, with good rigidity, high precision, reliable performance and durable.
    2, Adopt imported high-precision ballscrew, run smoothly, ensure high precision of machine.
    3, Adopt famous domestic brands water cooling spindle, small noise, Good cutting, ensures batch processing for a long time.
    4 overall good structural design, ensures machine have long life time.
    5, high performance subdivision driver applications to ensure high speed, high precision.
    6, Excellent mechanical and electrical design, various electric parts is well chosen, keep the failure rate to a minimum.
    CNC two heads acrylic cutting machine parameters:
    Machine modelTYE-1212-2
    Body structureThe whole cast aluminum
    Working area1200/2* 1200*1 5 0mm
    Spindle power1.5KW water cooling or bigger X 2
    Spindle rotating24000r pm
    Max travel speed8000m / min
    Max engraving speed6000m/min
    Driving motorStepper motor
    VoltageAC220V/50HZ or 110V/60HZ
    Working accuracy0.0 1 mm
    Reposition accuracy0.0 3 mm
    Driving modeXYZ axis ball screw
    Running commandG code
    Controlling systemNcstudio software ( DSP,Mach 3 optional)
    Machine size1 65 0X 1650X 103 0 mm

    CNC two heads acrylic cutting machine details:


    CNC two heads acrylic cutting machine samples:
